I'm surprised there wasn't a thread for this. Somewhat similar to the Expert Sleepers General CV, but smaller, DIY and seems to be more immediate. Build looks super easy.
https://www.thonk.co.uk/shop/sebsongs-bread-butter/
![Image]()

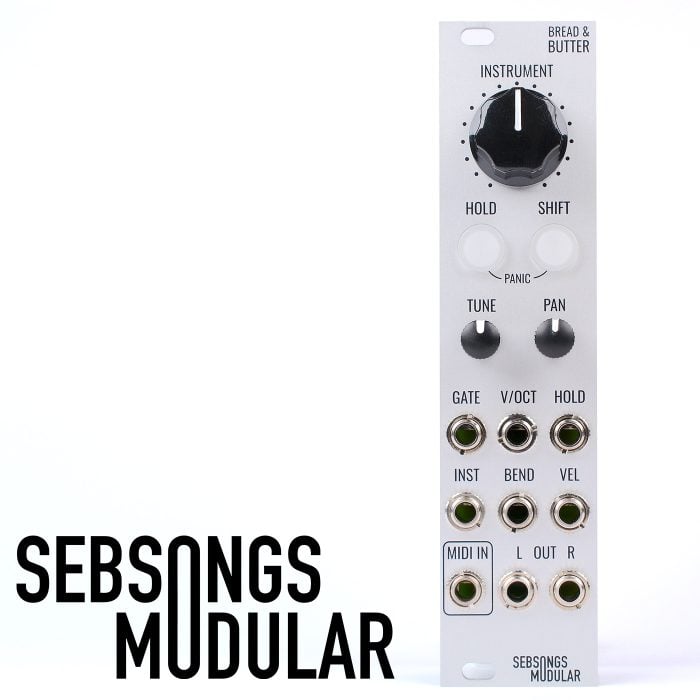

Bread & Butter from Sebsongs is a 6HP polyphonic synth voice using General MIDI with 128 selectable instruments and a drum bank. The GM sound banks have a synthetic and warm quality to them, and the variety of instruments makes this module a flexible and fun addition to any Eurorack system.
Bread & Butter features the standard V/OCT and GATE inputs for triggering the synth voice. Thanks to a polyphony of up to 64, the voices will decay independently making it possible to ratchet chords that decay polyphonically. If the HOLD function is engaged, each note will also sustain. In addition, there is a MIDI input, which can be used simultaneously with the V/OCT and GATE inputs. For example; trigger the drums on MIDI channel 10 while generating a bass line via the V/OCT/GATE inputs. The synth voices can also be played polyphonically via MIDI.
Bread & Butter has stereo outputs and the PAN knob lets you spread the polyphonic voices out in the stereo sound field. Parameters such as pitch bend, velocity and instrument selection can be voltage controlled, which allows the sounds to quickly be pushed into weird and unfamiliar territory! For a full list of instrument banks and supported MIDI messages please see the User Manual.
Specs:
Size: 6 HP
Depth: 40 mm
Current draw: +51 mA / -12 mA
CV input range: +/- 5V
Gate input voltage: 3.3-10V
Polyphony: Up to 64 voices (40 voices with sustain)
Bank 1
1 Acoustic Grand Piano
2 Bright Acoustic Piano
3 Electric Grand Piano
4 Honky-tonk Piano
5 Electric Piano 1
6 Electric Piano 2
7 Harpsichord
8 Clavi
9 Celesta
10 Glockenspiel
11 Music Box
12 Vibraphone
13 Marimba
14 Xylophone
15 Tubular Bells
16 Dulcimer
Bank 2
17 Drawbar Organ
18 Percussive Organ
19 Rock Organ
20 Church Organ
21 Reed Organ
22 Accordion
23 Harmonica
24 Tango Accordion
25 Acoustic Guitar (nylon)
26 Acoustic Guitar (steel)
27 Electric Guitar (jazz)
28 Electric Guitar (clean)
29 Electric Guitar (muted)
30 Overdriven Guitar
31 Distortion Guitar
32 Guitar Harmonics
Bank 3
33 Acoustic Bass
34 Electric Bass (finger)
35 Electric Bass (pick)
36 Fretless Bass
37 Slap Bass 1
38 Slap Bass 2
39 Synth Bass 1
40 Synth Bass 2
41 Violin
42 Viola
43 Cello
44 Contrabass
45 Tremolo Strings
46 Pizzicato Strings
47 Orchestral Harp
48 Timpani
Bank 4
49 String Ensembles 1
50 String Ensembles 2
51 Synth Strings 1
52 Synth Strings 2
53 Choir Aahs
54 Voice Oohs
55 Synth Voice
56 Orchestra Hit
57 Trumpet
58 Trombone
59 Tuba
60 Muted Trumpet
61 French Horn
62 Brass Section
63 Synth Brass 1
64 Synth Brass 2
Bank 5
65 Soprano Sax
66 Alto Sax
67 Tenor Sax
68 Baritone Sax
69 Oboe
70 English Horn
71 Bassoon
72 Clarinet
73 Piccolo
74 Flute
75 Recorder
76 Pan Flute
77 Blown Bottle
78 Shakuhachi
79 Whistle
80 Ocarina
Bank 6
81 Square Lead (Lead 1)
82 Saw Lead (Lead)
83 Calliope Lead (Lead 3)
84 Chiff Lead (Lead 4)
85 Charang Lead (Lead 5)
86 Voice Lead (Lead 6)
87 Fifths Lead (Lead 7)
88 Bass + Lead (Lead 8) 8
9 New Age (Pad 1)
90 Warm Pad (Pad 2)
91 Polysynth (Pad 3)
92 Choir (Pad 4)
93 Bowed (Pad 5)
94 Metallic (Pad 6)
95 Halo (Pad 7)
96 Sweep (Pad 8)
Bank 7
97 Rain (FX 1)
98 Sound Track (FX 2)
99 Crystal (FX 3)
100 Atmosphere (FX 4)
101 Brightness (FX 5)
102 Goblins (FX 6)
103 Echoes (FX 7)
104 Sci-fi (FX 8)
105 Sitar
106 Banjo
107 Shamisen
108 Koto
109 Kalimba
110 Bag Pipe
111 Fiddle
112 Shanai
Bank 8
113 Tinkle Bell
114 Agogo
115 Pitched Percussion
116 Woodblock
117 Taiko Drum
118 Melodic Tom
119 Synth Drum
120 Reverse Cymbal
121 Guitar Fret Noise
122 Breath Noise
123 Seashore
124 Bird Tweet
125 Telephone Ring
126 Helicopter
127 Applause
128 Gunshot
Bank 9
Drums
https://www.thonk.co.uk/shop/sebsongs-bread-butter/
Bread & Butter from Sebsongs is a 6HP polyphonic synth voice using General MIDI with 128 selectable instruments and a drum bank. The GM sound banks have a synthetic and warm quality to them, and the variety of instruments makes this module a flexible and fun addition to any Eurorack system.
Bread & Butter features the standard V/OCT and GATE inputs for triggering the synth voice. Thanks to a polyphony of up to 64, the voices will decay independently making it possible to ratchet chords that decay polyphonically. If the HOLD function is engaged, each note will also sustain. In addition, there is a MIDI input, which can be used simultaneously with the V/OCT and GATE inputs. For example; trigger the drums on MIDI channel 10 while generating a bass line via the V/OCT/GATE inputs. The synth voices can also be played polyphonically via MIDI.
Bread & Butter has stereo outputs and the PAN knob lets you spread the polyphonic voices out in the stereo sound field. Parameters such as pitch bend, velocity and instrument selection can be voltage controlled, which allows the sounds to quickly be pushed into weird and unfamiliar territory! For a full list of instrument banks and supported MIDI messages please see the User Manual.
Specs:
Size: 6 HP
Depth: 40 mm
Current draw: +51 mA / -12 mA
CV input range: +/- 5V
Gate input voltage: 3.3-10V
Polyphony: Up to 64 voices (40 voices with sustain)
Bank 1
1 Acoustic Grand Piano
2 Bright Acoustic Piano
3 Electric Grand Piano
4 Honky-tonk Piano
5 Electric Piano 1
6 Electric Piano 2
7 Harpsichord
8 Clavi
9 Celesta
10 Glockenspiel
11 Music Box
12 Vibraphone
13 Marimba
14 Xylophone
15 Tubular Bells
16 Dulcimer
Bank 2
17 Drawbar Organ
18 Percussive Organ
19 Rock Organ
20 Church Organ
21 Reed Organ
22 Accordion
23 Harmonica
24 Tango Accordion
25 Acoustic Guitar (nylon)
26 Acoustic Guitar (steel)
27 Electric Guitar (jazz)
28 Electric Guitar (clean)
29 Electric Guitar (muted)
30 Overdriven Guitar
31 Distortion Guitar
32 Guitar Harmonics
Bank 3
33 Acoustic Bass
34 Electric Bass (finger)
35 Electric Bass (pick)
36 Fretless Bass
37 Slap Bass 1
38 Slap Bass 2
39 Synth Bass 1
40 Synth Bass 2
41 Violin
42 Viola
43 Cello
44 Contrabass
45 Tremolo Strings
46 Pizzicato Strings
47 Orchestral Harp
48 Timpani
Bank 4
49 String Ensembles 1
50 String Ensembles 2
51 Synth Strings 1
52 Synth Strings 2
53 Choir Aahs
54 Voice Oohs
55 Synth Voice
56 Orchestra Hit
57 Trumpet
58 Trombone
59 Tuba
60 Muted Trumpet
61 French Horn
62 Brass Section
63 Synth Brass 1
64 Synth Brass 2
Bank 5
65 Soprano Sax
66 Alto Sax
67 Tenor Sax
68 Baritone Sax
69 Oboe
70 English Horn
71 Bassoon
72 Clarinet
73 Piccolo
74 Flute
75 Recorder
76 Pan Flute
77 Blown Bottle
78 Shakuhachi
79 Whistle
80 Ocarina
Bank 6
81 Square Lead (Lead 1)
82 Saw Lead (Lead)
83 Calliope Lead (Lead 3)
84 Chiff Lead (Lead 4)
85 Charang Lead (Lead 5)
86 Voice Lead (Lead 6)
87 Fifths Lead (Lead 7)
88 Bass + Lead (Lead 8) 8
9 New Age (Pad 1)
90 Warm Pad (Pad 2)
91 Polysynth (Pad 3)
92 Choir (Pad 4)
93 Bowed (Pad 5)
94 Metallic (Pad 6)
95 Halo (Pad 7)
96 Sweep (Pad 8)
Bank 7
97 Rain (FX 1)
98 Sound Track (FX 2)
99 Crystal (FX 3)
100 Atmosphere (FX 4)
101 Brightness (FX 5)
102 Goblins (FX 6)
103 Echoes (FX 7)
104 Sci-fi (FX 8)
105 Sitar
106 Banjo
107 Shamisen
108 Koto
109 Kalimba
110 Bag Pipe
111 Fiddle
112 Shanai
Bank 8
113 Tinkle Bell
114 Agogo
115 Pitched Percussion
116 Woodblock
117 Taiko Drum
118 Melodic Tom
119 Synth Drum
120 Reverse Cymbal
121 Guitar Fret Noise
122 Breath Noise
123 Seashore
124 Bird Tweet
125 Telephone Ring
126 Helicopter
127 Applause
128 Gunshot
Bank 9
Drums
